Description (1,789 characters)

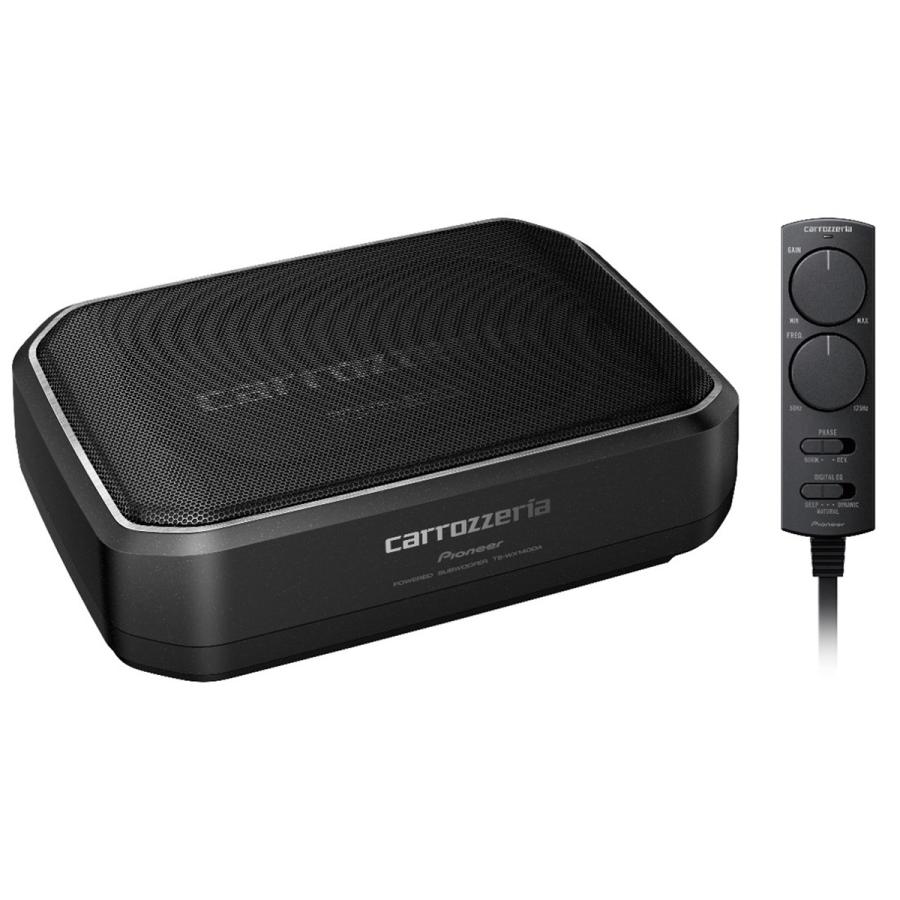

Product Information ■Model Number: TS-WX140DA
■Dimensions: 280mm (W) x 200mm (D) x 70mm (H)
■Weight (including accessories): 3.30kg
■Total weight (including packaging): 3.60kg
■Accessories: Brackets x 2, screws (Φ5mm x 14mm x 2, Φ5mm x 18mm x 2, Φ3mm x 8mm x 2), cords (5m x 2, 0.2m x 1), remote control, hook-and-loop fastener, cord clamp
■Speaker specifications: Diameter 20cm x 13cm
■Amplifier specifications ・Rated output (RMS): 50W (80Hz, 1% THD) ・Maximum output: 170W (80Hz, 35% THD) ・Input level (GAIN MAX): (RCA line) 60mV+60mV/22kΩ, NATURAL 60mV+60mV/22kΩ, DYNAMIC 30mV+30mV/22kΩ, (Speaker line) *DEEP 1.2V+1.2V/5kΩ, NATURAL 1.2V+1.2V/5kΩ, DYNAMIC 0.6V+0.6V/5kΩ
■Power supply used: DC14.4V (10.8V-15.1V)
■Maximum current consumption: 4.3A
■Earthing method: Negative earth method
■Speaker system type: Sealed method
■Output sound pressure level (In car, Input: 2V): 95dB, Natural 98dB, Dynamic 100dB
■ Frequency Range: Deep 20Hz-200Hz, Natural 40Hz-200Hz, Dynamic 40Hz-160Hz
■ Equipped with a "DIGITAL EQ" with three selectable bass settings. Tuned for each vehicle, minivan, sedan, compact car, and kei car, the DIGITAL EQ compensates for the characteristics of the ultra-low frequencies to deliver deep, rich bass. (Frequency Range: 20-200Hz)
■ High Power: 170W! The compact, high-power 170W Class D amplifier delivers clear, powerful bass.
■ Easy Installation: The same size as the WX130DA, it can be installed under the seat of a variety of vehicles. Its energy-saving design allows it to be powered from the audio system's power supply. *Images are for illustrative purposes only and may differ slightly from the actual product.
