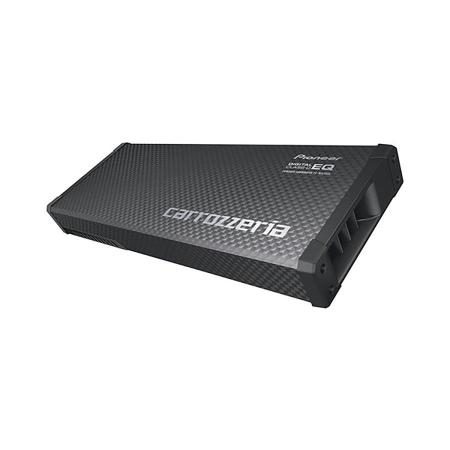

Product Information ■ Model Number: TS-WX70DA
■ Speaker Configuration: 16cm injection-molded PP cone diaphragm subwoofer x 2 (built-in amplifier)
■ Maximum Output: 200W (100W x 2)
■ Playback Frequency Response: 20Hz - 250Hz (DEEP) / 40Hz - 250Hz (DYNAMIC)
■ Output Sound Pressure Level (In-Vehicle Sound Pressure): 104dB (DEEP) / 110dB (DYNAMIC)
■ Low-Pass Filter: 50Hz - 125Hz (-12dB/oct.)
■ Maximum Current Consumption: 10A
■ Cord Length: Speaker Cord 5m / Power Cord 5m / Remote Control 6m
■ Dimensions: (W) 850mm x (H) 97mm x (D) 323mm
■ Weight: 10.4kg (including accessories)
■ Newly Developed DSP Equalizer "DIGITAL The "EQ" function allows you to easily switch between two low-frequency modes, "DEEP" and "DYNAMIC," using the remote control. "DEEP" mode is tuned based on the acoustic characteristics of minivans, sedans, compact cars, and kei cars, compensating for the characteristics of the ultra-low frequencies to achieve rich, gradational sound quality. It's ideal for reproducing deep bass sounds like jazz or classical music. "DYNAMIC" mode emphasizes frequencies that appeal to the human senses rather than increasing the output level, resulting in powerful bass that resonates throughout the cabin. It's ideal for reproducing the thumping bass of EDM and rock music. The design is space-efficient, allowing for installation in any vehicle size and delivering deep bass throughout the entire cabin. The speaker can also be placed on top, making effective use of luggage space. It supports connection to a Carrozzeria main unit as well as the factory system's speaker line input. It can also be connected to systems like CyberNavi and RakuNavi, allowing for a variety of system development options. *Images are for illustrative purposes only and may differ slightly from the actual product.

---
