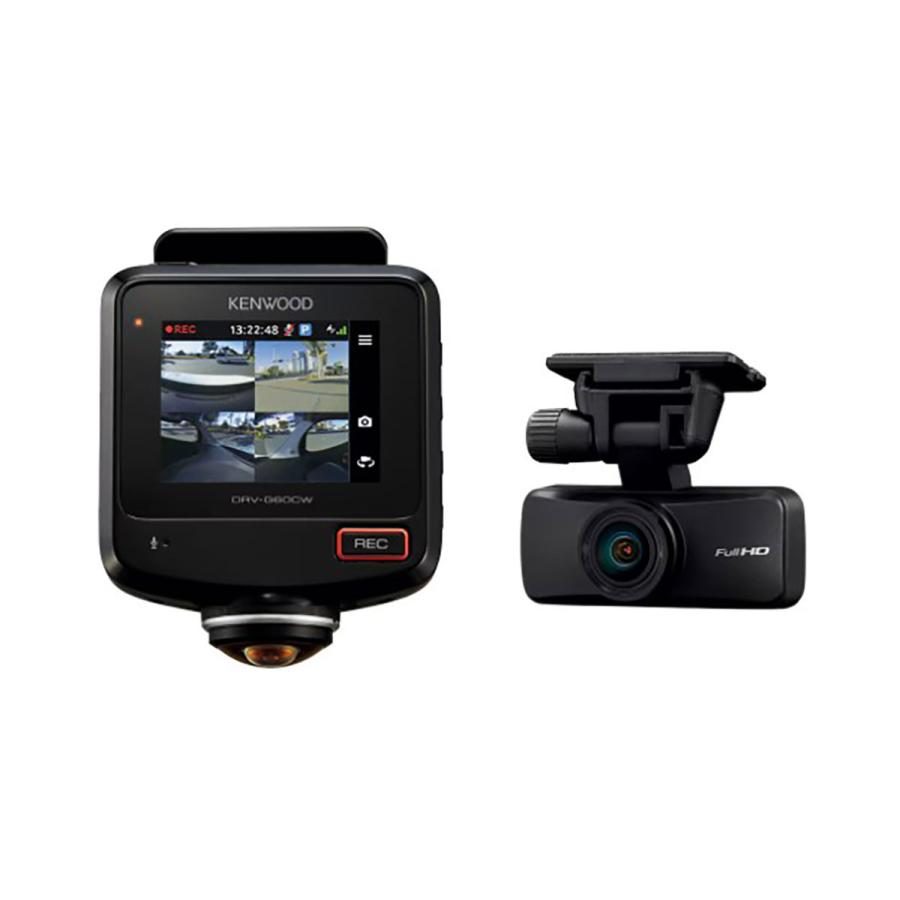

Product Information ■ Model Number: DRV-G60CW
■ Main Camera (Front Camera) ・ Power Supply Voltage: DC 14.4V/28.8V (8.5-30V) ・ Current Consumption (Maximum): 420mA (520mA) ・ Monitor Size: 2.4-inch Full-Color TFT LCD ・ Maximum Recording Angle: Horizontal 360°/Vertical 240°
■ Second Camera (Rear Camera) ・ Maximum Recording Angle: Horizontal approx. 131°/Vertical approx. 68°/Diagonal approx. 163°
■ Shooting-Related Specifications ・ Recording Mode Resolution ◇ Main Camera: Round Mode 1856 x 1856 ◇ Second Camera: Full-HD (1920 x 1080) (Video approx. 2.07 Megapixels) ・ Recording Media: microSD Card 16GB-128GB Supported V30 and above
■Dimensions etc.・External dimensions (excluding protrusions)◇Main unit: W74×H86.7×D31.2mm (With bracket attached: Maximum H104mm)◇2nd camera: W60×H25×D29mm (With bracket attached: Maximum H53mm)
■Weight◇Main unit: 139g (including microSD card, excluding mounting bracket/cable/lens cap)◇2nd camera: 28g (excluding cable/bracket)
■Power cable length: 3.5m (with built-in cigarette lighter plug cord and glass tube fuse Φ5 x L20mm 2A)
■Connection cable length: 9.0m
■Accessories・Exterior rearview camera (with bracket)・Cigarette lighter plug cord (3.5m)・microSD card (64GB included)・Exterior rearview camera cable (9.0m)
■360°Drive supports recording of left and right sides as well as the interior of the vehicle in addition to front and rear This two-camera model includes a rear camera that provides clearer recording of rearward and forward, left, right, and right-angle views, as well as the rear view through the rear window. This unit includes a 3D NAND microSD card with improved reliability, including enhanced rewrite durability and fragmentation resistance. The STARVIS™ CMOS sensor, which is resistant to dark scenes, captures clear footage not only during the day but also at night and in tunnels. Seven levels of brightness adjustment for both the front and rear cameras are available, along with automatic exposure adjustment for nighttime and tunnel driving. This unit captures clear footage, minimizing blown-out highlights and crushed shadows that occur in environments with extreme contrasts between light and dark, such as backlight, streetlights, and tunnel entrances and exits. The large record button on the bottom of the unit allows for quick and easy recording in emergencies or when you want to keep a special moment. *This product does not guarantee video recording in all situations. *This product does not guarantee the validity of accident evidence in court. *We are not responsible for any malfunctions of this product, any damage caused by its use, or any corruption of data stored on the microSD card. *This product is designed to record vehicle driving conditions and accident situations. Using it for other purposes or for mischief may violate the Personal Information Protection Act, privacy, or portrait rights. We assume no responsibility for these matters. *This product can only be used in Japan. It cannot be used overseas. *When driving, please observe traffic rules, pay attention to the distance between you and the vehicle ahead, your surroundings, and the driving environment, and drive safely by braking as necessary. Furthermore, even if used correctly according to the instruction manual, we cannot guarantee complete operation. We assume no responsibility for any damages resulting from such use. *Drivers should not stare at or operate the LCD screen while driving. *LED traffic lights may record images that appear to flicker or flash. We assume no responsibility for traffic light identification or recording. *Please read the installation instructions carefully and install the unit within 20% of the windshield from the top, or in a location hidden by the rearview mirror that does not obstruct the driver's forward visibility. *Install the unit so that it is within the wiper sweep area. *Make sure it does not overlap the vehicle registration label or other items. *Make sure it does not interfere with driving or airbag deployment. *Do not install near a television antenna (e.g., terrestrial digital broadcasting) or electrical equipment. This may reduce television reception, cause flickering, or cause noise. *When installing this unit in a vehicle equipped with a driver assistance system, refer to the vehicle's instruction manual and select a location that will not interfere with the driver assistance system. *Do not block or soil the camera lens, or place reflective objects near the lens. *Coatings on the front and rear windshields of your vehicle may affect recording quality. *GPS reception will be reduced if the windshield is made of glass that does not transmit radio waves (heat-reflective or heat-insulating glass). *If the rear windshield has a heat ray, install the unit away from the heat ray. *Unplug the cigarette lighter after use or if the unit will not be used for an extended period of time. Depending on the vehicle model, the cigarette lighter power may not be turned off even when the engine is turned off, which may result in a fire or a dead battery. *This product will be ordered from the manufacturer upon your order. *We do not accept cancellations, exchanges, or returns after an order has been placed. *After your order has been placed, we may be unable to meet your desired delivery date or may have to decline your order due to reasons such as "out of stock," "discontinuation of production," or "delivery date undetermined." Thank you for your understanding.

---
