Product Information

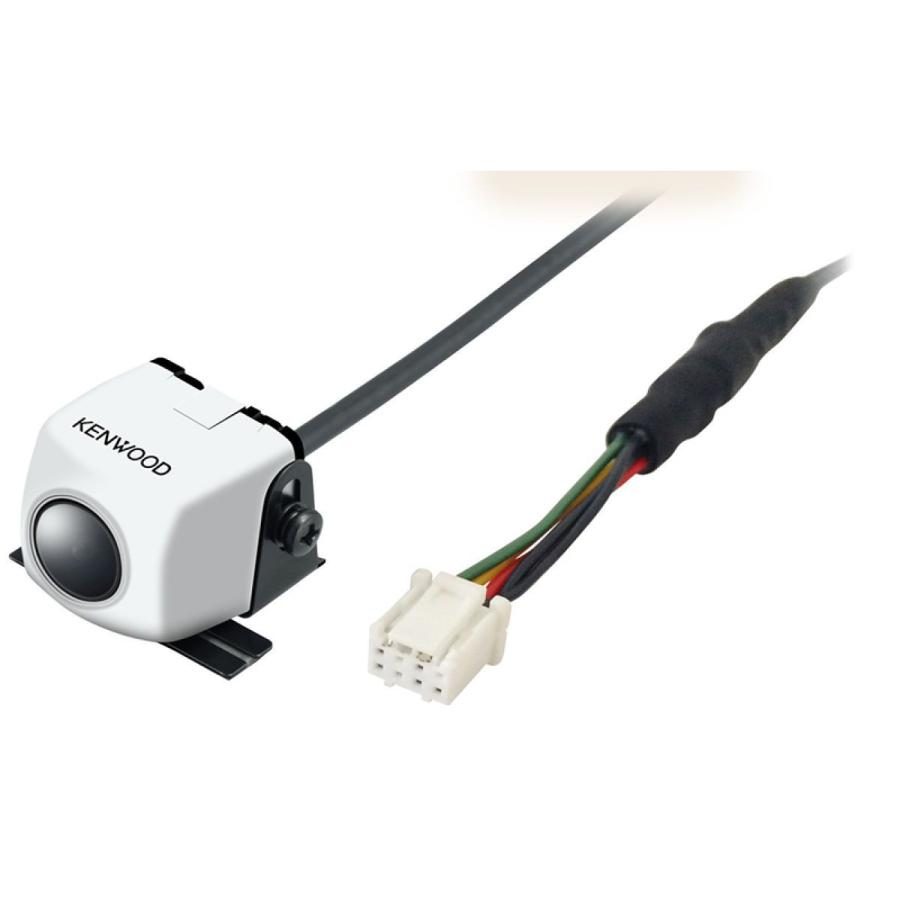

■Manufacturer Part Number: CMOS-C230W
■Color: White
■External Dimensions (W×H×D): Camera section 23.4×23.4×23.9mm
■Weight: Approximately 21g (excluding cord)
■Cable Length: Camera section 1.5m, power cable 7.5m
■Output Image: Wide-angle mirror image (for rearview monitoring)
■Image Sensor: 330,000 pixels, 1/3.6-inch Color CMOS
■ Lens: Wide-angle, focal length f=1.12mm, F-stop 2.2
■ Angle of view: Horizontal approx. 128° / Vertical approx. 104°
■ Video output: 1Vp-p (75Ω)
■ Illumination range: Approx. 9,000 to 100,000 lux
■ Power supply voltage: 14.4V (9-16V)
■ Maximum current consumption: Approx. 50mA or less
■ For use with Kenwood navigation systems only. *Product notes** Please secure the bracket with screws as necessary. However, in this case, any modifications to the body are at the customer's own risk. We assume no responsibility for any rust or damage to the vehicle resulting from this. Compatible Kenwood navigation systems: MDV-M805L, MDV-M705W, MDV-M705, MDV-Z904W, MDV-Z904, MDV-Z704W, MDV-Z704, MDV-L504W, MDV-L504, MDV-L404W, MDV-L404, MDV-L503W, MDV-L503, MDV-L403W, MDV-L403
Equipped with a high-sensitivity CMOS sensor for clear images. High-quality images without smear ensure excellent visibility, even at night.
Industry-leading dust and water resistance, equivalent to IP67 (measured by Kenwood internal testing), for use in harsh environments. Suitable for installation outside the vehicle, even in harsh environments.

---

Car Electronics Back-up Cameras and Other In-Vehicle Cameras Cars, Motorcycles, Bicycles, Automobiles, Car Navigation Systems In-Vehicle Cameras JAN/ISBN Code: 4975514055371 Product Code: 4975514055371
