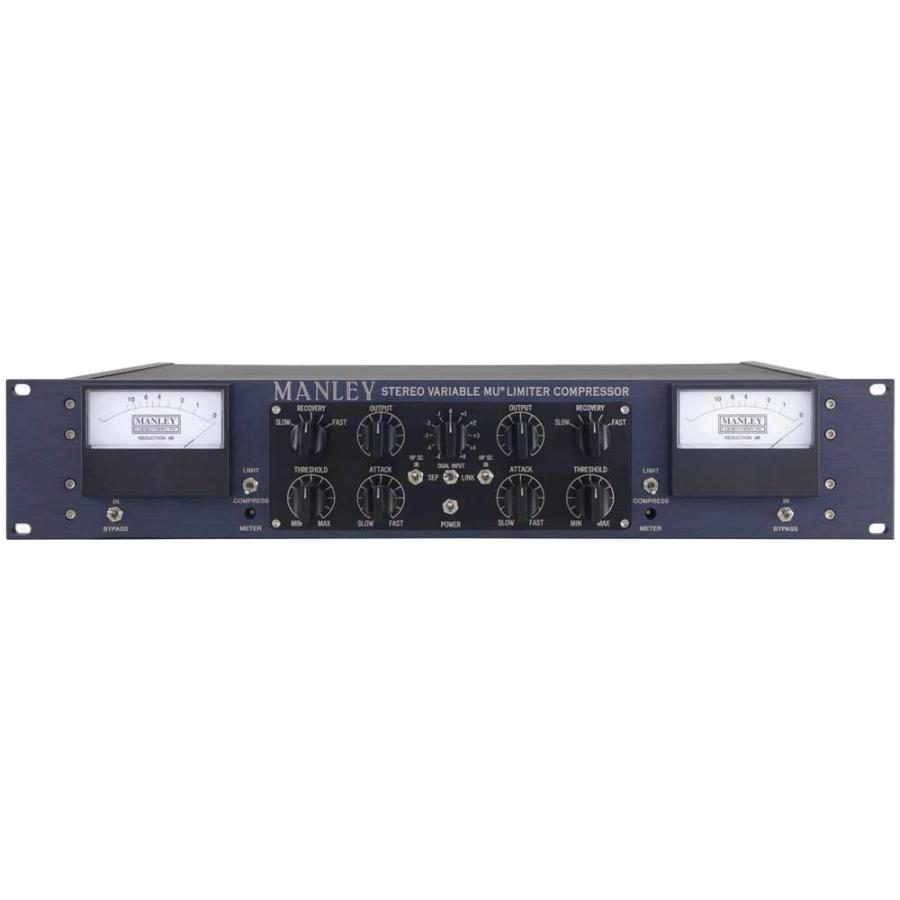

Variable Mu is a comp-limiter that can be used in the final stages of music production to thoroughly blend and polish your mix. Features: Manley custom input/output transformers (housed in nickel-overlaid mu-metal cases); Flat frequency response: 20Hz - 25kHz; Balanced inputs and outputs; All-tube circuitry per channel: 5670, 5751 (12AX7), 7044 (5687), 12AL5 (T-Bar Mod replaces the 5670 with two pairs of 6BA6); Independent tube and heater power supplies; Hard-wired bypass switch; This is the signature Manley all-tube compressor, allowing you to smoothly mix any source. The current version includes a High Pass Side Chain. Specifications: Transformer-balanced XLR input; Transformer-balanced XLR output; Input impedance: 600Ω; Output impedance: 600Ω; Input attenuator: Step switch; Maximum gain: 35dB; Maximum output: +30dBu / 26V RMS, 26dB headroom; Frequency response: 20Hz - 25kHz; Flat THD +N (High Frequency Distortion): <0.1% Sine Wave Noise @ 1kHz: -85dB Ratio Limiter Mode: 4:1 to 20:1 Compressor Mode: 1.5:1 to 1:1 Attack Time: 25mS to 70mS (milliseconds) Threshold: Variable Recovery: 0.2S, 0.4S, 0.6S, 4S, 8S (seconds) High-Pass Side Chain Filter: -3dB @ 100Hz Stereo Link Meter: Self-illuminated, manufactured by Sifam (units manufactured after December 2003/serial number MSLC61642 use LED lights; units manufactured before December 2003/serial number MSLC61642 use 26V 1.2W FESTOON lamps) Power Consumption: 80W (120/240VAC) Operating Voltage: 100V, 120V, 220-240V @ 50/60Hz (power options set according to shipping region) Fuse Specifications: MDA or MDL SLO-BLO Time Delay 1 1/4" x 1/4" 1.25 A @ 100-120VAC (0.6 A (600mA) @ 220-240VAC)
■Management Code: 4530027253081
Category: DTM
・Recording Equipment Effects Pedal/Outboard Musical Instruments, Crafts, Collectible Musical Instruments, Recording Equipment, PA Equipment Recording Effects Pedal
JAN/ISBN Code: 4530027253081
Product Code: yh0008040
