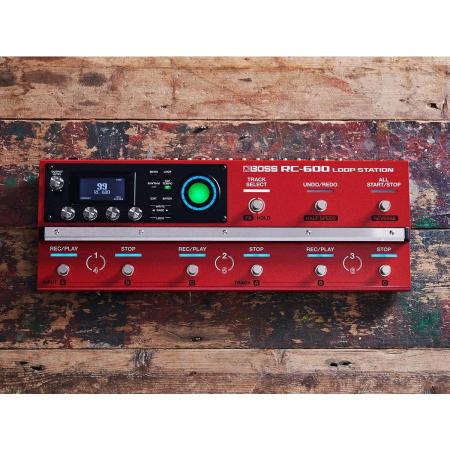

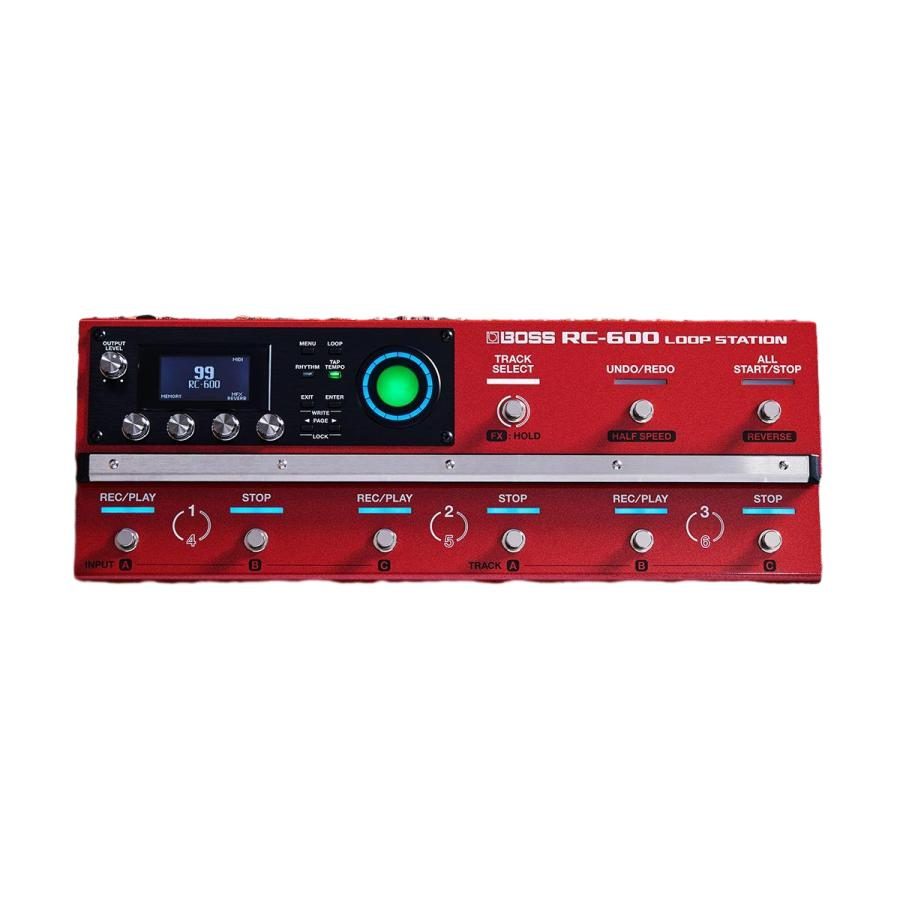

The flagship model of the LOOP STATION, boasting unprecedented flexibility and adaptability to a variety of situations. 32-bit AD/DA conversion and 32-bit floating-point internal processing deliver high-quality sound. 6 stereo tracks. Total memory capacity of up to 13 hours. 9 freely assignable foot switches. INPUT FX and TRACK FX each allow simultaneous use of four effects. 49 INPUT FX types and 53 TRACK FX types are included. New effects such as ARMONY and ELECTRIC are also available.
- Two XLR input terminals with phantom power support, one standard stereo
- Two line input terminals, one stereo
- Three line output terminals
- Recorded loops
- Phrases, effects and controls
- Able to save up to 99 assignment settings
- Loops
- More than 200 built-in rhythms that can be synchronized with phrases
- Patterns and 16 drum
- Kits
- Controllable via MIDIThe flagship model of the floor-standing LOOP STATION, offering the highest level of sound quality and unparalleled customizabilityFeaturesThe flagship model of the LOOP STATION, capable of adapting to a variety of situations and boasting unprecedented flexibility
- High-quality sound thanks to 32-bit AD/DA conversion and 32-bit internal floating-point processing
- Stereo 6-track specification. Total recording time is up to 13 hours.
・9 freely assignable foot switches
・Four effects can be used simultaneously for both INPUT FX and TRACK FX
・49 types of effect for INPUT FX and 53 for TRACK FX
・Equipped with built-in types. New effects such as ARMONY and ELECTRIC are also available.
・Two XLR input jacks with phantom power, standard stereo
・Two line input jacks, stereo
・Three line output jacks
・Recorded loops
・Phrases, effects, and controls
・Save up to 99 assignment settings
・Loops
・More than 200 built-in rhythms that can be synchronized with phrases
・Patterns and 16 drum kits
・MIDI Controllable via
- Sampling frequency: 44.1kHz
- AD, DA conversion: 32-bit
- Internal processing: 32-bit floating point
- Recording/playback: Number of tracks: 6, Data format: WAV (44.1kHz, stereo 32-bit floating point), Maximum recording time: approx. 1.5 hours (1 track), approx. 13 hours (total memory)
- Rhythms
- Types: Over 200 types
- Rhythms
- Kits: 16 types
- Effects
- Types INPUTFX: 49 types, TRACKFX: 53 types, MASTERFX: 2 types
- Memories: 99
- Nominal input level: MICIN 1, 2/-40dBu, INSTIN 1, 2/-10dBu
- Maximum input level: MICIN MICIN 1, 2/0dBu, INSTIN 1, 2/+7dBu, +20dBu (switchable)
・Input Impedance: MICIN 1, 2/3kΩ, INSTIN 1, 2/1MΩ, 25kΩ (switchable)
・Nominal Output Level: MAINOUTPUT/-10dBu, SUBOUTPUT 1, 2/-10dBu
・Maximum Output Level: MAINOUTPUT/+7dBu, SUBOUTPUT 1, 2/+7dBu
・Output Impedance: MAINOUTPUT/1kΩ, SUBOUTPUT 1, 2/1kΩ
・Recommended Load Impedance: MAINOUTPUT/10kΩ or more, SUBOUTPUT 1, 2/10kΩ or more
・Controls: REC/PLAY switches x 3, STOP switches x 3, TRACK SELECT switch, UNDO/REDO switch, ALL START/STOP switch, MENU button, LOOP button, RHYTHM button, TAPTEMPO button, ENTER button, EXIT button, PAGE button, 1-4 knobs, OUTPUTLEVEL knob
・Display: Graphic LCD 128 x 64 dots (backlit)
・Connections: MICIN 1, 2 jacks/XLR type (balanced, phantom power: DC48V, 10mA Max), INSTIN 1, 2 jacks, MAIN OUTPUT jack, SUB OUTPUT 1, 2 jacks/1/4-inch type, PHONES jack/stereo 1/4-inch type, CTL 1, 2/EXP1 jack, CTL 3, 4/EXP2 jacks (TRS 1/4-inch type), USB jack/USB Type B, MIDI (IN, OUT) terminals, DCIN terminal
・Power supply: AC adapter
・Current consumption: 1.2A (phantom power on), 1.1A (phantom power off)
・External
Dimensions: 435 (W) x 163 (D) x 66 (H) mm
・Weight: 2.4 kg
・Accessories: AC adapter, instruction manual, "Safety Precautions" leaflet, warranty card
・Optional accessories: Footswitch/FS-5U, Dual
・Footswitch/FS-6
・FS-7, Expression
・Pedals: FV-500H
・FV-500L
・EV-30
・RolandEV-5
