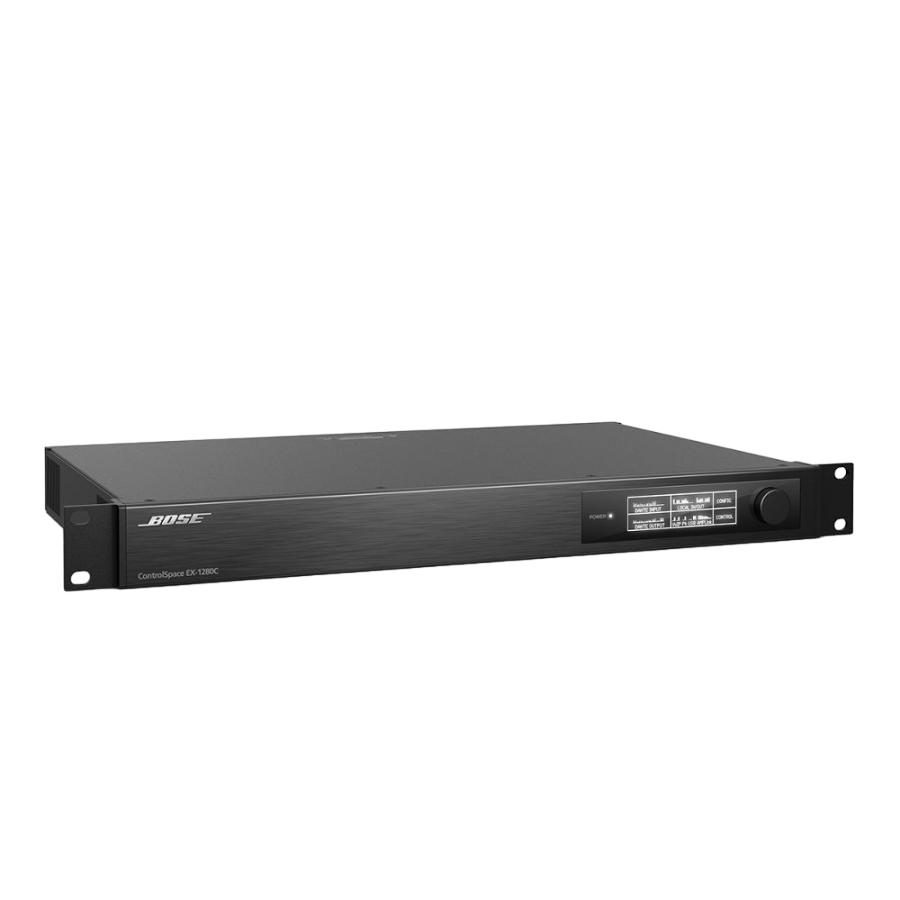

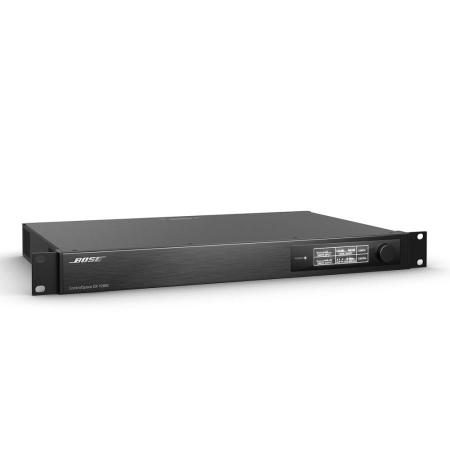

The ControlSpace EX conferencing processor offers a flexible DSP platform for scalable systems, providing the functionality and flexibility to meet the needs of rooms of various sizes. Open Architecture: The all-in-one ControlSpace EX-1280C provides signal processing for a wide range of microphone-based conferencing applications. The EX-1280C, the flagship processor in the ControlSpace EX series, features 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellation (AEC), and 64 x 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop functionality, making configuration quick and easy.
■ Applications
・ Theaters
・ Stadiums and Arenas
・ Houses of Worship
・ Resorts
・ Accommodations
・ Multi-purpose Spaces. The ControlSpace EX conferencing processor features a flexible DSP platform for scalable systems, providing the functionality and flexibility to meet the needs of rooms of various sizes. Open Architecture
・ The ControlSpace EX-1280C, with its all-in-one design, provides signal processing for a wide range of microphone-based conferencing applications. As the flagship processor in the ControlSpace EX series, the EX-1280C offers 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellation (AEC), and 64 x 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop functionality, making configuration quick and easy.
■ Applications
・Theaters
・Stadiums and Arenas
・Houses of Worship
・Resorts
・Accommodation
・Multi-purpose Spaces Features
■ All-in-One Design: Supports VoIP, PSTN, and USB soft codecs in a compact 1U enclosure.
■ 12-Channel High-Performance AEC: Equipped with 12 channels of high-performance AEC that supports both analog and Dante inputs. A single EX-1280C can support multiple rooms, or multiple processors can share the AEC.
■ Adaptive Noise Cancellation: Each AEC channel features nonlinear processing and comfort noise for improved conference clarity.
■ Two-Line VoIP: An internal web interface allows corporate IT personnel to configure VoIP parameters without access to design files or installer assistance.
■ Supports PSTN Connection: The PSTN connection (RJ-11) is compatible with POTS and analog telephone systems worldwide. ■ USB Connection: Supports USB connection for easy connection of PC software codecs. ■ Dante Connection Support: Dante audio networking allows up to 64 x 64 channels of connection to Dante-enabled microphones and other Dante-enabled devices. ■ AmpLink Port: Supports 8 channels of uncompressed, low-latency digital audio connection. Connect to Bose power amplifiers equipped with AmpLink using standard CAT5/6 shielded cable (STP). ■ Front Panel Interface: Equipped with a large OLED display and rotary encoder. Allows you to set network parameters and check channel operation. ■ GPIO (5 inputs/5 outputs): Equipped with contact inputs/outputs for operating buttons and driving LEDs on connected microphones. Signal Processor: 32-bit fixed-point/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz Dynamic Range: Over 115 dB, A-weighted/20 Hz to 20 kHz, analog input to analog output Output Channels: 8 balanced, line level Frequency Response: 20 Hz to 20 kHz (+0.3/-0.1 dB) Input Channels: 12 balanced, mic/line level PC Configuration Software: ControlSpace Designer software version 5.5 or later ■ Management Code: 4969929250322 Category: DTM Recording Equipment Effects Pedals/Outboard Musical Instruments, Crafts, Collections, Musical Instruments, Recording Equipment, PA Equipment Recording Effects Pedals JAN/ISBN Code: 4969929250322 Product Code: mt0158885
