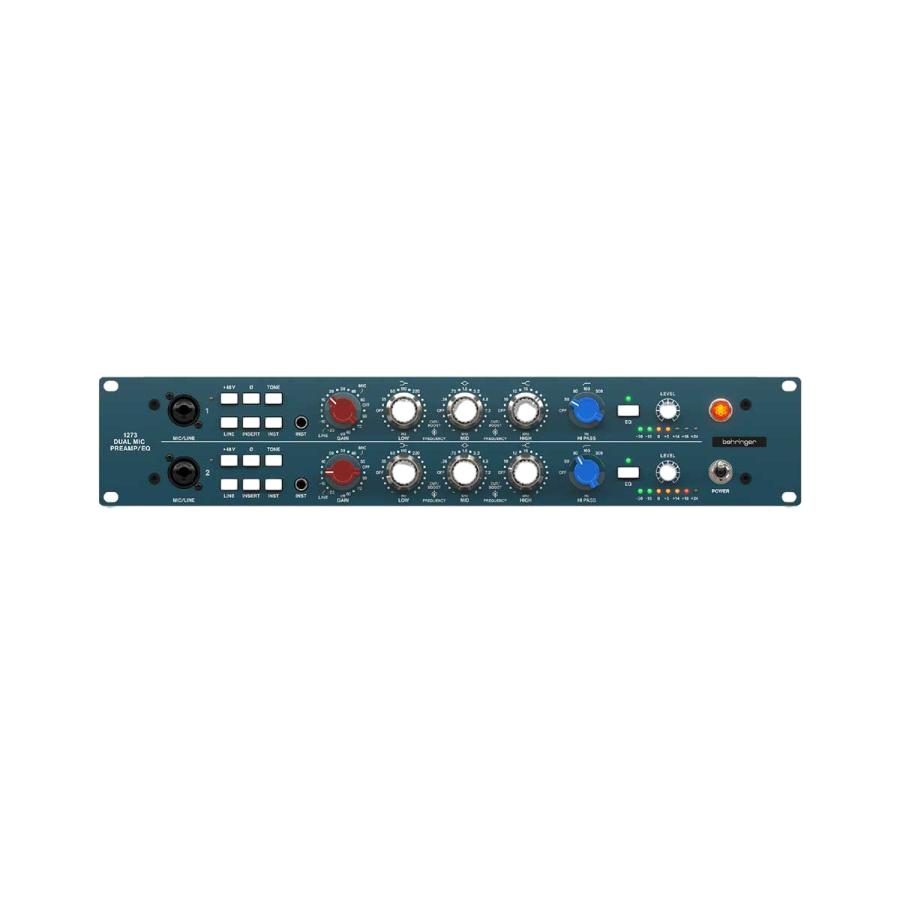

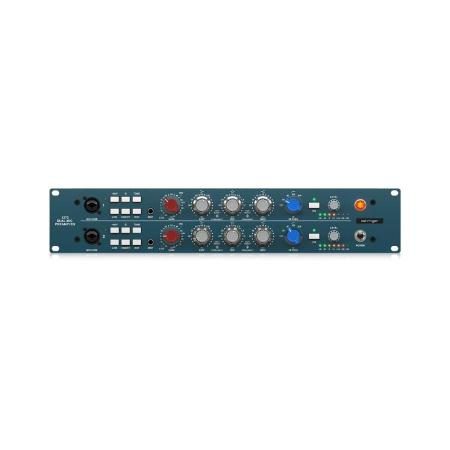

The 1273 is a two-channel microphone preamplifier based on the legendary 1073* circuit, featuring a 3-band EQ and custom MIDAS transformers.
・A two-channel microphone preamplifier with a 3-band EQ based on the classic 1073* design
・Class A, all-discrete circuit design for maximum signal purity
・Custom-built MIDAS input/output transformers
・Versatile gain control for mic, line, and instrument inputs
・Electronically controlled, resistor-step 80 dB rotary gain switch for precision and low noise
・Tone function changes the input transformer impedance for microphone optimization
・Dedicated phase, tone, insert, line, instrument, and phantom power switches for each channel.
・A two-channel microphone preamplifier with a custom MIDAS transformer and 3-band EQ.
FeaturesThe 1273 is a two-channel microphone preamplifier based on the legendary 1073* circuit, featuring a 3-band EQ and custom MIDAS transformers.
- 2-channel microphone preamp with 3-band equalizer based on the classic 1073* design
- Class A, all-discrete circuit design for maximum signal purity
- Custom-built MIDAS input/output transformers
- Versatile gain control for mic, line, and instrument inputs
- Electronically controlled, resistor-step 80 dB rotary gain switch for precision and low noise
- Tone function allows input transformer impedance to be changed for microphone optimization
- Dedicated phase, tone, insert, line, instrument, and phantom power switches for each channel
- Switchable inductor-based equalizer section plus passive 3rd-order high-pass filter
- Low frequency boost/cut at 35, 60, 110, and 220 Hz
- 360, 700, 1600, 3200, 4800, and 7200 Mid-frequency boost/cut at 10, 12, and 16 kHz
・High-frequency boost/cut at 10, 12, and 16 kHz
・Five-position inductor high-pass filter (OFF, 50, 80, 160, and 300 Hz) on each channel
・Transformer-balanced inputs and outputs with XLR/combo connectors
・High-precision 7-segment LED signal level meters on each channel
・Rugged 2U rackmount chassis for durability and portability. 1273 Every once in a while, a legendary piece of hardware emerges that shakes the music industry and becomes a favorite in studios worldwide. The 1073* is one such piece of equipment. A microphone preamp with a distinctive tone and rich sound, it shaped the sound of multiple musical generations, from the grit of '70s rock to the sophisticated pop of the '80s. It quickly became a staple in renowned studios and influenced countless classics. Today, we pay homage to that legendary studio cornerstone with the Behringer 1273, a two-channel microphone preamp with built-in EQ. The 1273 is more than just a remake. Developed in collaboration with one of the original design engineers, their invaluable knowledge and experience ensures a design that remains faithful to the original while meeting the needs of modern productions. Versatile Operation: The 1273 is based on Class A discrete circuitry, ensuring maximum signal purity and minimal tonal artifacts. Each input and output stage features high-quality, custom-designed Midas transformers to maintain signal clarity and purity. Each channel also features a multi-function gain control for various input types, including microphone, line, and instrument, providing flexibility for a wide range of recording scenarios. When switching from dynamic to ribbon microphones, a simple press of the tone switch adjusts the transformer impedance to match the microphone being used, making it a convenient tool for using vintage microphones. Optimal Input Level Setting: The 1273 features an electronically controlled, resistive-step rotary gain switch, allowing up to 80dB of gain adjustment. This allows you to precisely set the optimum input level while minimizing noise and easily recalling settings for every mix. The precision 3-band EQ section offers low frequencies of 35, 60, 110, and 220 Hz, mid frequencies of 360, 700, 1600, 3200, 4800, and 7200 Hz, and high frequencies of 10, 12, and 16 kHz. The inductor-based rotary switch adds a deep, vintage sound to any mix. Combined with a five-position high-pass filter with settings of 50, 80, 160, and 300 Hz, these settings offer creative control. Vocals are given more intimacy and presence, guitars a warmer, woodier tone, and basses a more defined, funky presence. Fixed frequency settings and fine-tuning of specific frequencies ensure precise repeatability. Additional Features: The 1273 includes an EQ switch that allows you to easily switch between your current mix and the original signal (bypassing gain and EQ settings). A 7-segment LED and level knob at the end of the signal chain provide easy level monitoring. Audio Inputs Mic Input Type: Front 2 x XLR transformer-balanced, Rear 2 x XLR transformer-balanced Impedance: 300 Ω / 1200 Ω (balanced) Maximum Input Level: +19 dBu Gain: -20 dB to 80 dB Mic EIN (80 dB gain, 22 Hz to 22 kHz): -125 dBu (unweighted) CMRR (at 60 dB gain): >90 dB Line Input Type: Front 2 x 1/4 TRS combo socket (transformer-balanced), Rear 2 x 1/4 TRS (transformer-balanced) Impedance: 10 kΩ (balanced) Maximum Input Level: +30 dBu (at -34 dB pad) Gain: -20 dB to 80 dB CMRR (at 0 dB gain): >80 dB Instrument Input Type: Front 2 x 1/4 TRS, high-impedance via transformer Impedance: 600 kΩ (unbalanced) Maximum Input Level: +30 dBu (-20 Gain: -20 dB to 80 dB Insert Returns: 2 x 1/4" TS Audio Output Type: 2 x XLR, 1/4" TRS transformer balanced Impedance: <80 ohms (balanced) Maximum Output Level: +28 dBu Insert Sends: 2 x 1/4" TS System Specifications Frequency Response (Mic Input): 20 Hz to 20 kHz, ±0.5 dB Frequency Response (Line Input): 20 Hz to 20 kHz, ±1 dB Distortion (THD+N): <0.01% @ 1 kHz, +4 dBu, <0.07% 50 Hz to 20 kHz, +4 dBu Noise: <-83 dBu (20 Hz to 20 kHz unweighted) Dynamic Range: >102 dB (20 Hz to 20 kHz) Non-weighted) Circuit: Class A amplifier, inductor EQ equalizer High-pass filter: 50 / 80 / 160 / 300 Hz (18 dB/octave) Low frequency range: 35 / 60 / 110 / 220 Hz Boost/cut: ±15 dB Mid frequency range: 360 / 700 / 1600 / 3200 / 4800 / 7200 Hz Boost/cut: ±15 dB High frequency range: 10 / 12 / 16 kHz Boost/cut: ±15 dB Control switches: 48 V phantom power x 2, polarity inversion x 2, tone x 2, line x 2, insert x 2, instrument x 2, EQ on x 2 Adjustments: Gain: -20 to 80 dB x 2, low: ±15 dB, up to 220 Hz x 2, mid: ±15 dB, up to 7.2 kHz x 2High Frequency: ±15 dB, up to 16 kHz x 2High Pass: Off, 50 Hz, 80 Hz, 160 Hz, 300 Hz x 2Output Level: Zero (Off) 0 dB x 2Power Switch: On/Off (with LED power indicator)■Management Code: 4033653081450Category: DTMRecording EquipmentEffects/Outboard Musical Instruments, Crafts, CollectionsMusical Instruments, Recording Equipment, PA EquipmentRecording EffectsPedalsJAN/ISBN Code: 4033653081450Product Code: mt0187156
