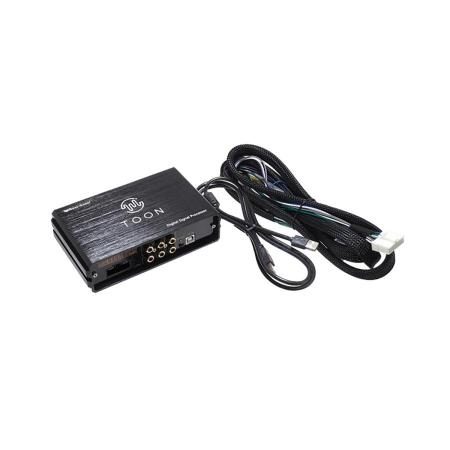

Product Information ■ Model Number: DSP-Z101 [Main Unit Specifications]
■ Power Supply: DC12V (negative earth)
■ Power Supply Voltage: 10V-15V
■ Maximum Current Consumption: 15A
■ Current Consumption: 0.35A (No Signal)
■ Fuse Used: 250V, 15V, Φ5.2 x 30mm (Included with the vehicle connection cable)
■ Remote Terminal Output for External Amplifier: 12V
■ Remote Output Current: 0.1A
■ Frequency Characteristics (+ 0/-1dB): 20Hz-22kHz
■S/N Ratio: 105dB
■Total Harmonic Distortion: 0.01%
■Dimensions: W170 x D103 x H45mm
■Weight: 900g
■Vehicle Connection Harness: Approx. 2m
■Includes: DSP-equipped amplifier, vehicle connection harness, USB cable (Type A/Type B) (approx. 135cm), hook-and-loop fasteners (2 x 10cm), instruction manual, warranty card
■7-inch WVGA center display (6 speakers) for Mazda Roadster (Please note the shape of the 24-pin coupler.
■High-performance DSP-equipped amplifier reproduces realistic sound. Experience the immersive experience of listening to a performance right in front of you.
■The TOON X Series comes with audio adjustment software that allows you to freely create and customize your sound. No need to cut wires or perform other complicated modifications—just plug and play! Compatible Vehicles: Mazda Roadster. Please confirm compatibility before purchasing. <> Install this product in a well-ventilated location. (Recommended installation location: under the passenger seat.) Cannot be used in vehicles with a factory external amplifier. Popping noises may be heard when powering on/off, but this is not a malfunction. Please reset all sound settings on the factory deck to their default settings (OFF or FLAT). The factory deck's fader adjustment will no longer be available. Front and Rear Independent Mode cannot be used. This is a factory function that outputs separate audio for the front and rear seats. The name of this factory function varies by manufacturer. In rare cases, popping noises may occur when powering off. Setting the activation timing switch to HIGH may reduce the popping noise. Images are for illustrative purposes only and may differ slightly from the actual product.

---
