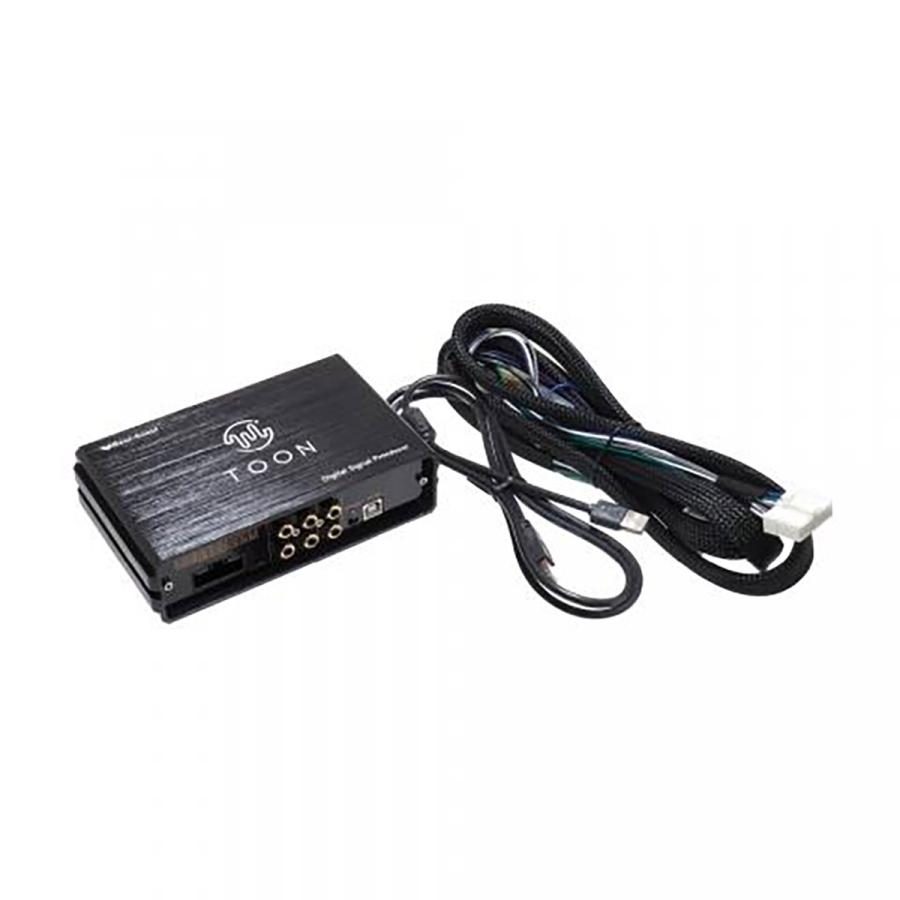

Product Information ■ Product Number: DSP-S201
■ Power Supply: DC12V (negative earth)
■ Power Supply Voltage: 10V-15V
■ Maximum Current Consumption: 15A
■ Current Consumption: 0.35A (No Signal)
■ Fuse Used: 250V, 15A, Φ5.2A x 30mm *Included with the vehicle connection cable
■ Remote Terminal Output for External Amplifier: 12V
■ Remote Output Current: 0.1 A
■Frequency Response (+0/-1dB): 20Hz-22kHz
■S/N Ratio: 105dB
■Total Harmonic Distortion: 0.01%
■Dimensions: W170 x D103 x H45mm
■Weight: 900g
■Vehicle Connection Harness: Approx. 2m
■Includes: DSP-equipped amplifier, vehicle connection harness, USB cable (Type A/B) approx. 135cm, two 10cm hook-and-loop fasteners, instruction manual, warranty card
■Transform your Subaru BRZ's factory audio into a luxurious sound with just one installation!
■Dedicated audio adjustment software allows you to freely customize the sound. Adjust to your liking, such as for more bass.
■No complicated wiring required; plug-and-play installation is easy.
■The TOON X Series is equipped with a high-performance DSP. DSP (Digital Signal Processor) is a digital adjustment technology that minimizes sound quality degradation and effectively improves sound quality even in the harsh environment of a vehicle cabin. Compatible Vehicles: Subaru BRZ, Model Year: R03/07-, Model Number: ZD8, Factory Equipment: DOP Navigation, Number of Speakers: 8. Please confirm compatibility before purchasing. << Vehicle Compatibility Chart (Manufacturer's Website) >> Install this product in a well-ventilated location. (Recommended installation location: Under the passenger seat.) Cannot be used in vehicles with factory external amplifiers. Popping noises may be heard when powering on/off, but this is not a malfunction. Please reset all sound settings on the factory deck to their default settings (OFF or Flat). The factory deck's fader adjustment will no longer be available. Front and rear independent seating mode* cannot be used on vehicles with this mode. This is a factory function that outputs separate audio to the front and rear seats. The name varies by manufacturer. Manufacturer's Product: Using the DSP-GS1 allows you to switch between the factory sound (front and rear independent mode available) and the TOONX sound (front and rear independent mode unavailable). *In rare cases, a pop noise may occur when the power is turned off. Setting the startup timing switch to [HIGH] may reduce the pop noise. *This product will be ordered from the manufacturer upon your order. *We do not accept cancellations, exchanges, or returns after an order has been placed. *After your order has been placed, we may be unable to meet your desired delivery date or may have to decline your order due to reasons such as "out of stock," "discontinued production," or "delivery date undetermined." Thank you for your understanding.

---
