Product Information ■ Product Number: DSP-T327
■ Power Supply: DC 12 V (negative earth)
■ Power Supply Voltage: 10-15 V
■ Maximum Current Consumption: 15 A
■ Current Consumption: 0.35 A (No Signal)
■ Fuse: 250 V, 15 A, φ5.2 x 30 mm (Included with the vehicle connection cable)
■ Remote Terminal Output for External Amplifier: 12 V
■ Remote Output Current: 0.1 A
■ Frequency Response (+0/-1 dB): 20 Hz - 22 kHz
■ S/N Ratio: 105dB
■Total Harmonic Distortion: 0.01%
■Dimensions: W170 x D103 x H45mm
■Weight: 900g
■Vehicle Connection Harness: Approx. 2m

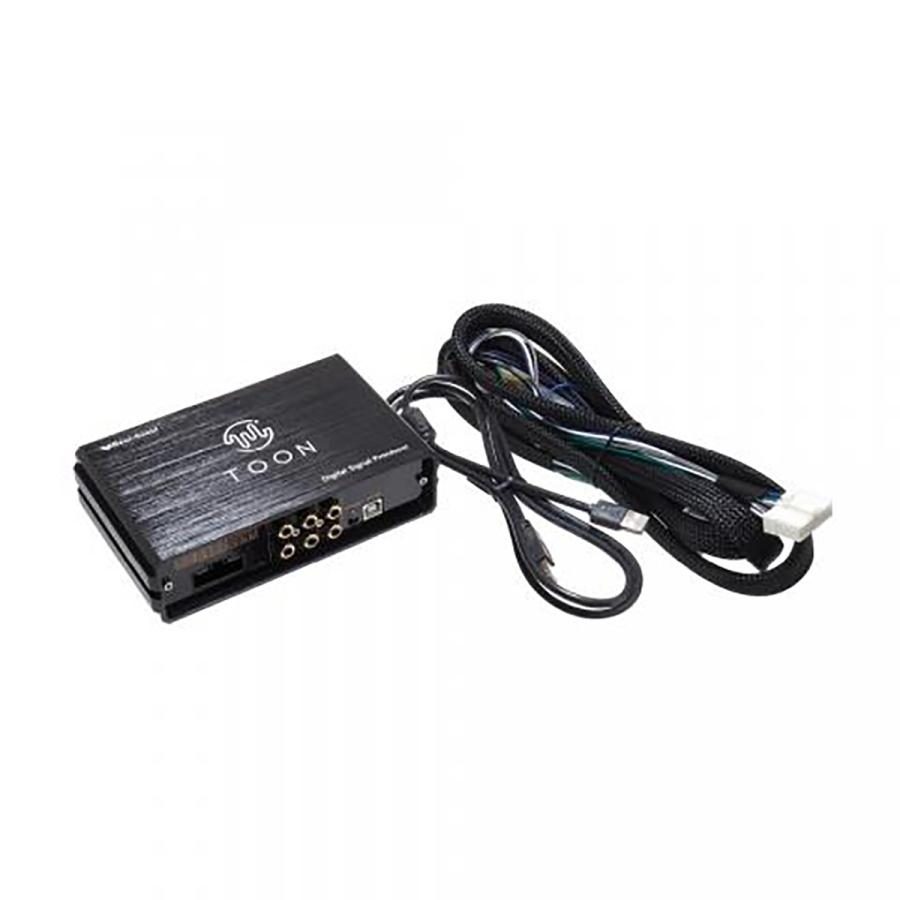

■Includes: DSP-equipped amplifier, vehicle connection harness, USB cable (Type A/Type B) (approx. 135cm), Velcro (2 x 10cm), speaker output stabilization cable (DSP-S1 only), instruction manual, warranty card
■The high-performance DSP amplifier reproduces realistic sound. Experience the immersive feeling of being right in front of the stage.
■Dedicated acoustic adjustment software allows you to freely create your own sound. Adjust the bass to your liking, for example.
■Easy installation made possible by BeatSonic. No complicated wiring is required; simply plug and play.
■The TOON X Series is equipped with a high-performance DSP. The DSP (Digital Signal Processor) is a digital adjustment technology that minimizes sound degradation and effectively improves sound quality even in the harsh environment of a vehicle cabin. Compatible Vehicles: Toyota Aqua; Model Year: July 2003-/November 2004-; Vehicle Model: MXPK10/MXPK11/MXPK15/MXPK16, MXPK11 (Aqua GR SPORT). Install this product in a well-ventilated location. (Recommended installation location: under the passenger seat.) Cannot be used in vehicles with a factory external amplifier. Popping noises may be heard when powering on/off, but this is not a malfunction. Reset all audio settings on the factory deck to their default settings (OFF or FLAT). The factory deck's fader adjustment will no longer function. Front and rear independent seating mode* cannot be used on vehicles with this mode. This is a factory function that outputs separate audio to the front and rear seats. The name varies by manufacturer. By using the manufacturer's DSP-GS1, you can switch between the factory sound (front and rear independent mode available) and the TOONX sound (front and rear independent mode unavailable). *In rare cases, a pop noise may occur when the power is turned off. Setting the startup timing switch to [HIGH] may reduce the pop noise. *Please be sure to check compatibility before purchasing. <> Car Audio Sound Quality Improvement Item Cars, Motorcycles, Bicycles Automobiles Car Audio, Speakers In-Vehicle Amplifier JAN/ISBN Code: 4944799043120 Product Code: 4944799043120
