Product Information ■Model Number: RSH10Z-LBS-B
■Screen Size: 10.1" Wide (125.3mm H x 222.7mm W x 255.5mm Diagonal)
■Image Quality: WSVGA
■Resolution: 1,024 x 600
■Pixel Count: 1,843,200
■Effective Pixel Count: 99.9% or more
■Lighting Method: LED
■Power Supply Voltage: DC 14.4V (Operating Range: 11-16V) Negative Ground
■Height (Open): 26.8mm (168.9mm*) *When the monitor is lowered 90 degrees
■Depth: 250.3mm
■Frequency Response: 70-20kHz
■Maximum Output: 8W x 2
■Speakers: 50mm x 2
■Bluetooth Version: Bluetooth 5.2
■Supported profiles: A2DP, AVRCP
■Output: +4dBm (Power Class 2)
■Accessories: Easy-to-use remote control

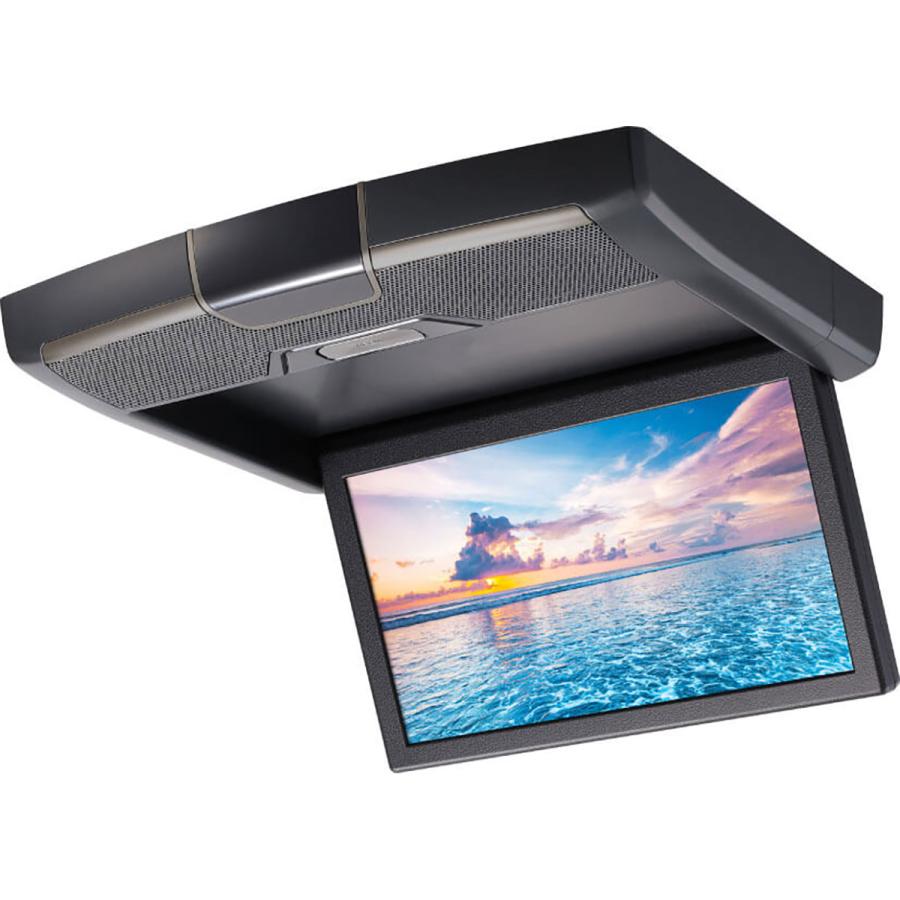

■Alpine's first 10.1-inch rearview vision system with built-in speakers. Enjoy a wide variety of content via HDMI connection with clear sound quality.
■10.1-inch ceiling-mounted slim rearview vision system expands your in-car enjoyment
■The slim, thin design minimizes reflections in the rearview mirror for excellent rear visibility!
■Installs beautifully with a dedicated installation kit
■Uses a WSVGA high-resolution LED LCD for beautiful image display
■The opening angle is freely adjustable, so you can enjoy the view at your preferred angle. *Maximum opening angle: 175°
■HDMI connection allows you to enjoy a wide variety of content!
■Close the screen to pause the video and resume playback from the next scene
■Simple and easy-to-use HDMI/RCA connection model (compatible with both)
■Two HDMI inputs. Bluetooth connection is also possible. ■The unit is black. The installation kit and wiring are compatible with 2019 and later 10.1-inch rear vision systems, making installation easy. Some vehicle exceptions apply. Please refer to the compatibility chart. This product is compatible with car navigation systems and display audio systems with HDMI output. This applies to Alpine car navigation systems manufactured from 2014 onwards. Alpine display audio systems compatible with the DAF11V/Z, DAF9V/Z, and DA7Z models are supported. An HDMI cable (sold separately) is required for HDMI connection. (KCU-610RV) A separate connection cable is required when connecting to Alpine car navigation systems manufactured from 2020 onwards. (KCU-620RV) A separate connection cable is required when connecting to Alpine car navigation systems with HDMI output manufactured from 2019 onwards. (KCU-610RV) RCA connections are not supported on 2020 and later Alpine car navigation systems and display audio systems. When connected to a factory optional navigation system, navigation audio will not be output from the rear vision speakers. *Please check the HDMI output specifications of the navigation system you are connecting (whether video and audio signals can be output via HDMI). *This product will be ordered from the manufacturer upon your order. *We do not accept cancellations, exchanges, or returns after an order has been placed. *After your order has been placed, we may be unable to meet your desired delivery date or may have to decline your order due to reasons such as "out of stock," "discontinuation of production," or "delivery date undecided." Thank you for your understanding.

---
