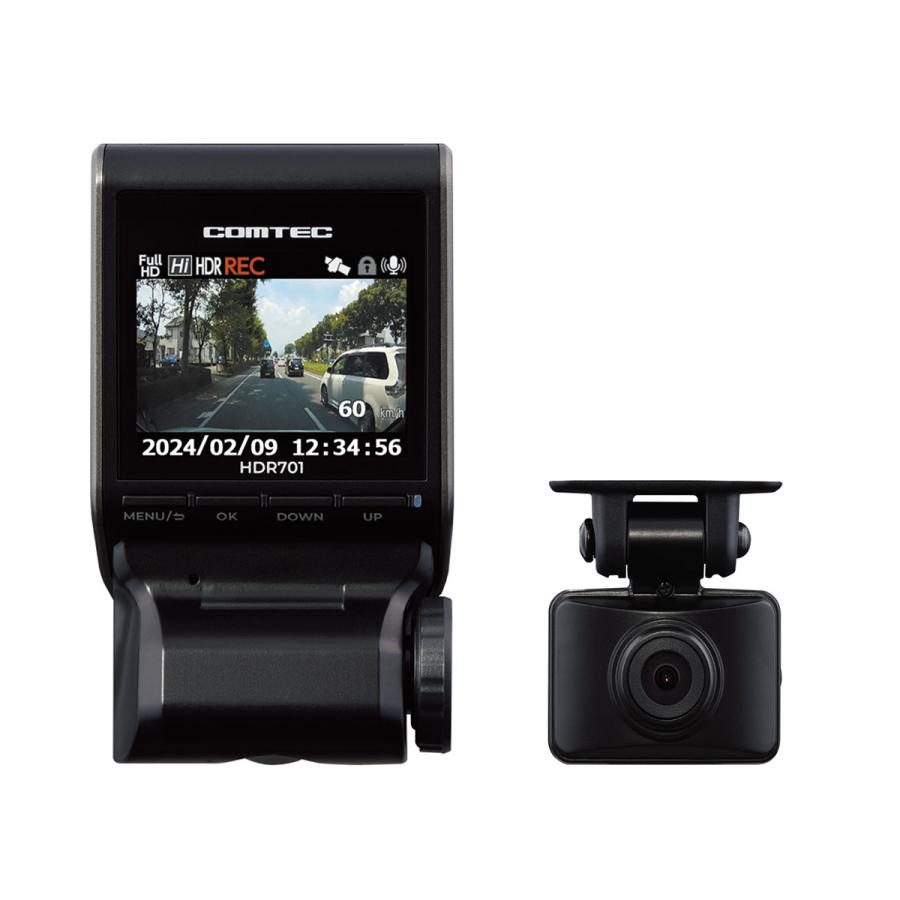

Product Information ■Model Number: HDR701
■LCD Size: 2.0-inch Full-Color IPS LCD
■Power Supply Voltage: DC12/24V
■Maximum Current Consumption: 700mA or less under normal conditions / 800A or less when charging with supercapacitor
■Recording Size: FullHD (1920 x 1080) / HD (1280 x 720)
■Product Warranty Period: 3 years (excluding consumables and accessories)
■Accessories: Cigarette lighter cord (approx. 4m), camera cable (approx. 7m), front camera mounting bracket, double-sided tape for fixing the front camera mounting bracket, double-sided tape for fixing the rear camera mounting bracket, (1) Hexagonal wrench, (2) Degreasing cleaner, sticker (manufacturer model number: HDROP-06), microSD card (32GB / class 10) [Front Camera Specifications]
■Image Sensor: 1/2.7-inch CMOS sensor
■Total number of pixels: 2 million pixels
■Lens angle of view: 115° horizontally, 59° vertically (143° diagonal)
■Dimensions (excluding protrusions): W55.6 x H96.7 x D41.3 mm / When mounting bracket is attached: W55.6 x H96.7 x D43.6 mm
■Weight: 118 g [Rear camera specifications]
■Image sensor: 1/2.7-inch CMOS sensor
■Total number of pixels: 2 million pixels
■Effective number of pixels: Maximum 2 million pixels
■Lens angle of view: 115° horizontally, 59° vertically (143° diagonal)
■Dimensions (excluding protrusions): W42.6 x H30.5 x D23.5 mm / When mounting bracket is attached W42.6×H48.6×D23.5mm
■Weight: 29g
■The camera is designed to be attached to the windshield to minimize obstruction of vision, ideal for installation around the rearview mirror, which is becoming larger due to safe driving support systems.
■Compared to hanging types, it can be mounted higher on the windshield, ensuring a clearer view.
■The camera is closer to the windshield, reducing glare.
■The stylish and compact camera blends seamlessly with the vehicle's design.
■Continues to record video even with the engine off. It also detects impacts and records video before and after an impact.
■Seven features support a comfortable drive: ・Approaching vehicle notification, ・Continuous approaching vehicle notification, ・Starting vehicle notification, ・Approaching vehicle notification, ・Lane departure notification, ・Drive support, ・Speed ​​alarm
■Data stored in this product provides various notifications to support safe driving. Registered data can be updated for free. This product's dedicated file system is less prone to data fragmentation on microSD cards than file systems (such as FAT) used on PCs. This product comes with a three-year warranty from the date of purchase. (However, this warranty does not cover consumables such as microSD cards and double-sided tape.) For vehicles with retractable rear windows or tinted windows, the rear camera should be installed on a rear tray or similar. This product is for use inside the vehicle only. Installation requires specialized knowledge. Please consult your dealer or car dealer for installation. Due to the rapid flashing of LED traffic lights, video footage may appear to be flashing. In addition, due to backlighting or low traffic light brightness, the color of the traffic light may be difficult to distinguish. In such cases, please use the video footage before and after passing the traffic light and the surrounding traffic conditions to determine the correct color. Please note that the manufacturer assumes no responsibility for any issues related to signal identification or recording. Always use the included microSD card when using this product. The manufacturer assumes no responsibility for malfunctions caused by incompatibility with microSD cards other than the included card. *When this product is in operation, the areas around the air vents, lens, SD card slot, and SD card can become particularly hot, so please be careful when touching them. *The image is for illustrative purposes only and may differ slightly from the actual product.

---
