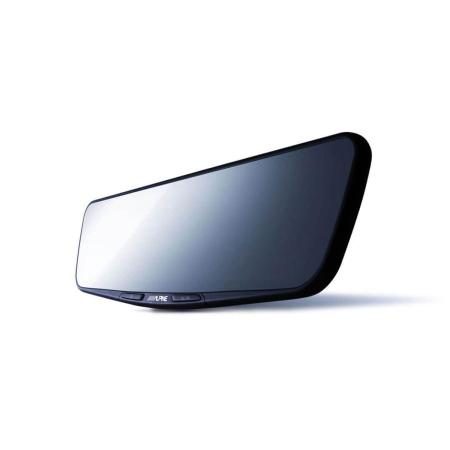

Product Information ■Model Number: DVR-DM1200A-OC-HI-200
■LCD Size: 12-inch (11.8 inches)
■LCD Pixels: 1920 x 440
■File Format: Video TS, Still Image JPG
■Recording Memory: Compatible microSD Card 16-128GB *Class 10 or higher
■Power Supply Voltage: 12V (Rated 14.4V)
■Operating Temperature: -20 to 60°C
■Storage Temperature: -40 to 85°C [Camera]
■Pixels: 2 million (Front/Rear)
■Angle of View ・Front: Diagonal 160 / Horizontal 137 / Vertical 73 ・Rear (For Indoor Use): Diagonal 135 / Horizontal 113 / Vertical 60 ・Rear (For External Use): Diagonal 135 / Horizontal 110 / Vertical 55
■Frame Rate: 28 fps (Front/Rear)
■F-Number: Front: 1.8, Rear (Interior): 2.0, Rear (External): 2.2
■Rear Camera Cover: Black [External Dimensions]
■Mirror: 307 x 88.4 x 34.7 mm
■Camera (Front/Rear Interior): 45.4 x 52.0 x 31.0 mm
■Camera (Rear Exterior, with Bracket): 40.0 x 30.3 x 41.7 mm
■Weight:
■Mirror: 430 g
■Camera (Front/Rear Interior): 40 g
■Camera (Rear Exterior, with Bracket): 57 g
■Since the entire arm is replaced with the original mirror, there are no visible wires, allowing for a sleek installation that doesn't feel like an afterthought.
■The slim design makes the large screen feel weightless. It looks beautiful on your vehicle. The button layout is designed with right-hand drive drivers in mind, and the icons clearly indicate the current setting. The front and rear cameras record, ensuring you won't miss any approaching trouble from the front or rear. Recorded footage can be played back on the unit itself, or on a PC using the included dedicated viewer. Five recording modes are available: continuous recording, impact recording, manual recording, parking recording, and still image capture. The 12-inch LCD screen is designed for easy viewing from the driver's perspective. Despite its large size, it features a slim design that doesn't feel overwhelming. Easily switch to rearview mirror mode with the press of a power button. The improved reflectivity of the mirror surface makes it easy to use as a rearview mirror even when the power is off. The LCD features a wide 160-degree viewing angle, both vertically and horizontally. It accommodates a wide range of perspectives, depending on the driver's physique, posture, and seat. ■Compatible Vehicles: Toyota Hiace Standard Body/Standard Roof, Wide Body/Mid-Roof: December 2013 (H25) - Present (4th generation and later) *Please confirm compatibility before purchasing. *Cannot be used if the mirror is equipped with an auto high beam sensor. *Cannot be used if the factory mirror has other built-in functions. *For vehicles equipped with a factory auto-dimming mirror with a built-in backup monitor, installing the separately sold cable (KWX-Y400HI-NR)*1 or RCA conversion unit (KWX-Y410HI-G)*2 will enable the backup monitor image to be displayed on the navigation system. *Cannot be installed on vehicles equipped with a factory digital inner mirror. *This product may not be installed if options are installed near the product mounting area. *Drilling is required to install an exterior rear camera. *1 Compatible with Alpine car navigation systems with a direct camera connection terminal. *2 Compatible with products with an RCA camera connection terminal, such as display audio. *This product will be shipped from the manufacturer upon customer order. *We do not accept cancellations, exchanges, or returns of products after an order has been placed. *After an order has been placed, we may be unable to meet your desired delivery date or may have to decline your order due to reasons such as "out of stock," "discontinued production," or "delivery date undecided." Thank you for your understanding.

---
